3 Ton Pallet Jet Malaysia
PRODUCT OVERVIEW

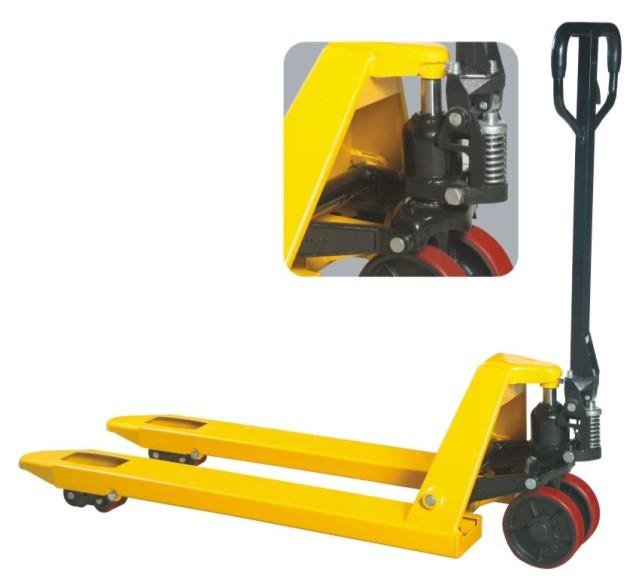

The 3 Ton Hand Pallet Truck from Blue Box Sdn Bhd is a manual pallet jet for moving loaded pallets over short distances in warehouses, factories, and loading docks. It has 1220mm forks, a fork width of 685mm across the fork frame, and a total lift height of 195mm. The truck weighs 96 kg, so it is a sturdy, heavy-duty machine that is still moved by hand.
The fork is lowered to just 85mm above the floor, so the forks slide under standard pallets, and the lift raises the load by 195mm. That is enough to lift a pallet clear of the floor for moving, though not for stacking or racking, which needs a stacker. The steering wheel is 180mm and the fork wheels 80mm.
The 3 ton capacity is the main reason to choose this model over a lighter pallet truck. It suits heavier palletised loads such as dense stock, machinery, and building materials, where a smaller truck would be overloaded. Manual handling and workplace transport are covered by DOSH Malaysia, and the load should always stay within the rated capacity.
Some details have not been supplied: the rated loading capacity should be confirmed in writing (the 3 ton figure is from the product name and MPN), and so should the fork and wheel materials and any certification. Please confirm these before purchase, and check that the 1220mm forks suit your pallet size.
Blue Box Sdn Bhd supplies the truck alongside its other Warehouse Operational Supplies equipment, including the hand pallet jets and the hand stacker, so warehouses across Petaling Jaya, Shah Alam, Klang, and Selangor can source their handling equipment from one supplier. Because of its weight, delivery is by lorry or freight. Visit www.blue-box.asia to view the full range or request a quotation.
Whether you are moving heavy pallets across a Klang warehouse or loading dense stock at a Shah Alam factory dock, the 3 Ton Hand Pallet Truck gives you a robust, fuel-free way to move loads by hand.
Product Specifications Table
| Specification | Detail |
| Product Name | 3 Ton Hand Pallet Truck (Pallet Jet) |
| Brand | BBSB |
| Model No. | M01-00001 |
| MPN | M01-AC3.0 |
| Type | Manual hand pallet truck (pallet jet) |
| Rated Capacity | 3 Ton (from product name / MPN; to be confirmed in writing) |
| Lower Fork Height (H1) | 85mm |
| Total Lift Height (H2) | 195mm |
| Fork Length (L) | 1220mm |
| Width Over the Fork (W) | 685mm |
| Steering Wheel (A) | 180mm |
| Fork Wheel (B) | 80mm |
| Truck Weight | 96 kg (truck weight) |
| Est. Packed Size (Courier/Lorry) | Approx. 130 cm (L) x 70 cm (W) x 30 cm (H) — estimated for a 1220mm fork truck, freight only |
| Delivery | Lorry or freight (too heavy for parcel courier) |
| Not Intended For | Lifting people, towing, slopes, or loads above the rated capacity |
| Country of Supply | Malaysia (Blue Box Sdn Bhd, Selangor) |
7 PRO Tips
- Tip 1: Confirm the rated capacity in writing and never load beyond it; keep the load centred and evenly spread across both forks.
- Tip 2: Check that the 1220mm forks suit your pallets before ordering, since a pallet that is too short or too narrow can tip.
- Tip 3: Push the forks fully under the pallet before lifting, and lift only a short distance for moving, not for stacking.
- Tip 4: Use the truck only on flat, hard, level floors, and avoid slopes, soft ground, gaps, and damaged surfaces.
- Tip 5: Lower the forks fully when parking, and never leave a raised load unattended.
- Tip 6: Inspect the hydraulics, wheels, forks, and handle before each use, and take any faulty truck out of service.
- Tip 7: Train operators and require safety footwear; plan routes that keep walkways clear of people.
Applications
Warehousing & Distribution
- Moving heavy palletised stock across warehouse floors
- Loading and unloading trucks at dock doors
- Staging heavy orders for dispatch
- Moving dense goods between storage and despatch areas
- General pallet movement where a forklift is not practical
Manufacturing & Factories
- Moving heavy raw materials on pallets
- Transferring finished goods to dispatch
- Moving machinery parts and equipment on pallets
- Supporting production lines with palletised supplies
- General in-plant pallet handling
Construction, Trade & Logistics
- Moving palletised building materials in yards and depots
- Handling heavy wholesale and trade pallet loads
- Loading palletised cargo for transport
- Moving stock within distribution depots
- General heavy pallet handling at loading bays
Features & Benefits Table
| Feature | Benefit |
| 3 Ton rated capacity (to be confirmed) | Suits heavy palletised loads that smaller trucks cannot take |
| 1220mm fork length | Long forks support large and long pallets |
| 685mm fork width | Balanced fork spacing across the pallet |
| 85mm lowered fork height | Forks slide under standard pallets |
| 195mm total lift | Lifts pallets clear of the floor for moving |
| Manual operation | No fuel, charging, or power source needed |
| Part of Blue Box’s warehouse handling range | Source pallet jets and stackers from one supplier |
Frequently Asked Questions (FAQ)
Q1. What is a 3 ton hand pallet truck used for?
It moves loaded pallets over short distances by hand, using forks that slide under the pallet and lift it clear of the floor.
Q2. What is the rated capacity?
The product is described as a 3 ton truck. Please confirm the rated loading capacity in writing before use.
Q3. What size are the forks?
The forks are 1220mm long, with a width over the fork of 685mm.
Q4. How high does it lift?
The total lift height is 195mm, and the forks lower to 85mm above the floor.
Q5. How much does it weigh?
The truck weighs 96 kg.
Q6. Can it stack pallets onto racking?
No. It lifts a short distance for moving pallets. For stacking, use a stacker.
Q7. Can it be delivered by courier?
No. The truck is too heavy for parcel courier, so delivery is by lorry or freight.
Q8. How do I order a 3 ton hand pallet truck in Malaysia?
You can request a quotation through www.blue-box.asia or contact Blue Box Sdn Bhd’s sales team by phone or WhatsApp for fast, Malaysia-wide delivery support.
Pain Points vs. Solutions
| Pain Point | Blue Box Solution |
| Moving heavy pallets by hand causes strain and injury | Hand pallet truck lifts the load so one person can move it |
| Forklifts are costly and too large for some areas | Manual truck needs no fuel or power |
| Lighter trucks are overloaded by heavy stock | 3 ton capacity truck (rating to be confirmed in writing) |
| Forks too short for long or large pallets | 1220mm forks |
| Sourcing handling equipment from different suppliers slows procurement | Available alongside Blue Box’s warehouse handling range |
Technical Documentation
Model: M01-00001
MPN: M01-AC3.0
Brand: BBSB
Rated Capacity: 3 Ton (to be confirmed in writing)
Lower Fork Height (H1) / Total Lift Height (H2): 85mm / 195mm
Fork Length (L) / Width Over Fork (W): 1220mm / 685mm
Steering Wheel (A) / Fork Wheel (B): 180mm / 80mm
Truck Weight: 96 kg (truck weight)
Est. Packed Size: Approx. 130 cm (L) x 70 cm (W) x 30 cm (H) — estimated for a 1220mm fork truck, freight only
Materials / Certification: Not stated
Reference Standard: General manual handling and workplace transport practice; refer to DOSH Malaysia (www.dosh.gov.my)
Notes to confirm: (1) The rated capacity is taken from the product name and MPN (M01-AC3.0) and should be confirmed in writing. (2) Packed size is an estimate for a 1220mm fork truck, freight only. (3) Materials and certification were not given. (4) The model M01-00001 and MPN M01-AC3.0 are both used, as supplied.
Order Now — Call to Action
Move heavy loads with less effort. Order the 3 Ton Hand Pallet Truck today from Blue Box Sdn Bhd — Malaysia’s trusted supplier of packaging, cargo securing, and warehouse equipment.
- WhatsApp: +6018 988 6818 / +6012 779 2930
- Phone: 03-8052-0108
- Email: customerservice@blue-box.asia
- Website: www.blue-box.asia
Bulk orders and Malaysia-wide lorry or freight delivery available. Request your quotation today.
Why Choose Blue Box
- Malaysia-based supplier with fast quotation turnaround for warehouse equipment.
- Established since 2017, serving warehouses, factories, and logistics companies across Selangor and Malaysia-wide.
- 3 ton manual pallet truck for heavy palletised loads.
- 1220mm forks for long and large pallets.
- One-stop sourcing — pair pallet trucks with stackers, spacers, and other warehouse supplies.
- Reliable stock availability supported by Blue Box’s dedicated warehouse operations.
- Responsive customer service via phone, email, and WhatsApp for quotations and freight arrangements.
Custom Branding & OEM
Blue Box Sdn Bhd offers custom product design and private label manufacturing support for warehouse handling equipment, including custom branding and bulk orders for corporate and distributor customers, subject to the specifications of the base product.
Minimum order quantities, lead times, and specifications vary by request. Contact the Blue Box sales team to discuss OEM requirements and receive a tailored quotation.
Company Information
Company: Blue Box Sdn Bhd (Reg. No. 201701018646 / 1232811-W)
Founded: 2017
Address: 27, Jalan Industri USJ 1/11, Taman Perindustrian USJ 1, 47600 Subang Jaya, Selangor, Malaysia
Phone: 03-8052-0108 / +6018 988 6818 / +6012 779 2930
Email: customerservice@blue-box.asia
Website: www.blue-box.asia
Specialisation: Packaging materials, cargo securing systems, workplace safety equipment, road safety products, and custom/private label manufacturing
Disclaimer (Product-Specific)
The 3 Ton Hand Pallet Truck is a manual pallet truck for moving loaded pallets over short distances on flat, hard, level floors. The 3 ton rating is taken from the product name and MPN (M01-AC3.0); the rated loading capacity should be confirmed in writing with Blue Box before use, and the load must never exceed it. The load must be evenly spread and centred across both forks. The truck must not be used to lift or carry people, to tow, on slopes, or on soft or damaged floors. Operators should be trained and should wear safety footwear. Inspect the truck before each use for hydraulic leaks, worn or damaged wheels, bent forks, and a loose handle, and take any faulty unit out of service. Certification, fork material, and wheel material have not been stated for this product. Blue Box Sdn Bhd recommends consulting DOSH Malaysia guidelines on manual handling and workplace transport. Weights and packing dimensions are approximate; specifications are subject to change without prior notice, so please confirm current specifications with our sales team before order confirmation
