Coach Screw Malaysia
PRODUCT OVERVIEW

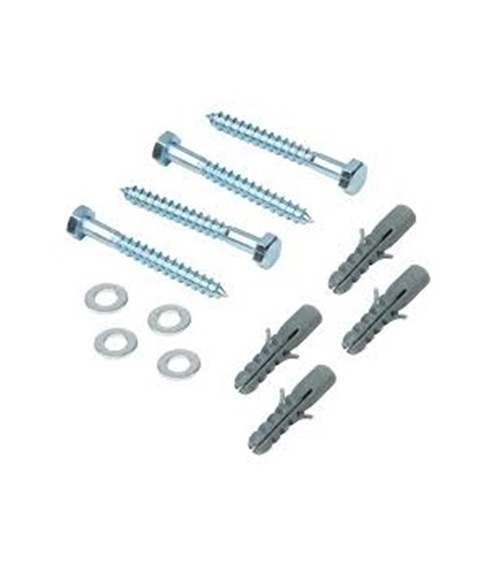

The M10 Coach Screw & Nylon Plug Set from Blue Box Sdn Bhd is a dependable fixing solution for mounting and anchoring items to concrete, brick, and solid masonry. Each set pairs one hex head coach screw with a matching nylon plug, and the range is offered in four lengths — 75mm, 90mm, 100mm, and 120mm — so contractors, warehouse operators, and facility maintenance teams across Malaysia can choose the right embedment for the job. Every set is sold individually, which makes it easy to buy exactly the quantity a project needs.
A coach screw, sometimes called a lag screw, has a hex head that is driven with a spanner or socket rather than a screwdriver, allowing far more torque to be applied than a standard slotted or Phillips screw. Combined with a nylon plug that expands inside a drilled hole as the screw is tightened, the set grips the surrounding base material and resists pull-out. Because the plug is matched to the screw, installers do not need to source separate plugs or guess compatibility, which reduces errors and saves time on site.
In warehouses and logistics facilities, sets like these are widely used to fix guard rails, bollards, safety barriers, brackets, and mounting frames to concrete floors and walls. Choosing the correct length matters: shorter sets such as the M10 x 75mm suit thinner fixtures, while the longer M10 x 100mm and M10 x 120mm sets provide extra embedment depth for thicker base plates or timber battens. For workplace safety installations, the Department of Occupational Safety and Health Malaysia (DOSH) provides guidance on safe working practices, and Blue Box recommends that installers follow it when drilling and fixing in industrial premises.
The four size variants share one parent model, B01-00178, with individual model numbers for each length: B01-00178-75, B01-00178-90, B01-00178-100, and B01-00178-120. Weight per set is 15 g, 20 g, 25 g, and 30 g, respectively, so even large orders remain light and economical to ship by courier anywhere in Malaysia.

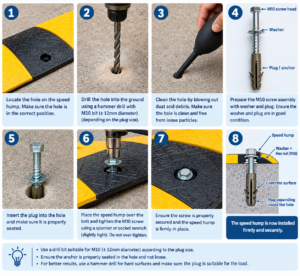

Best results depend on good installation practice. Drill a clean, straight hole to the depth and diameter recommended for the plug, clear away drilling dust, insert the nylon plug flush with the surface, and then drive the coach screw until it is firm without over-tightening. This M10 Coach Screw Malaysia range is designed for light-to-medium duty fixing; for structural, lifting, or life-safety anchoring, a rated and engineered anchor selected by a qualified person should be used instead.
Blue Box Sdn Bhd supplies these sets alongside its wider range of warehouse operational supplies and Warehouse Safety Solutions, so customers in Petaling Jaya, Shah Alam, Klang, and across Selangor can source the fixings together with the guard rails, bollards, and barriers they secure. Visit www.blue-box.asia to view the full range or request a bulk quotation for your project.
Whether you are anchoring a pedestrian barrier in a Shah Alam warehouse, fixing timber battens to a masonry wall in Klang, or mounting equipment brackets in a Petaling Jaya factory, the M10 Coach Screw & Nylon Plug Set gives you a practical, matched, and easy-to-order fixing in the length you need.
Product Specifications Table
| Specification | Detail |
| Product Name | Coach Screw & Nylon Plug Set (M10) |
| Brand | BBSB |
| Parent Model | B01-00178 |
| Set Contents | 1 x coach screw + 1 x matching nylon plug |
| Screw Type | Coach screw (hex head, coarse thread) |
| Screw Diameter | M10 |
| Plug Material | Nylon (size matched to the screw) |
| Screw Material / Finish | Steel (finish to be confirmed on order) |
| Available Lengths | 75mm, 90mm, 100mm, 120mm |
| Sold As | Per piece / per set |
| Est. Packed Box Size (Courier) | Approx. 15cm (L) x 10cm (W) x 5cm (H) per set (estimate — confirm after packing) |
| Typical Base Materials | Concrete, brick, solid masonry |
| Typical Application | Fixing guard rails, bollards, barriers, brackets, timber battens and frames |
| Country of Supply | Malaysia (Blue Box Sdn Bhd, Selangor) |
Size Variants
| Size | Model No. | Weight per Set |
| M10 x 75mm | B01-00178-75 | 15 g |
| M10 x 90mm | B01-00178-90 | 20 g |

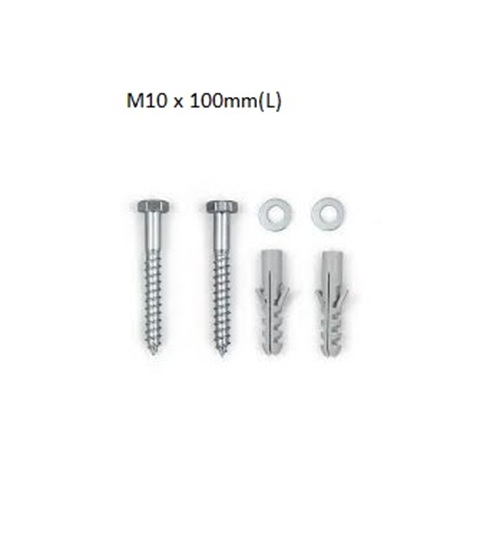

| M10 x 100mm | B01-00178-100 | 25 g |
| M10 x 120mm | B01-00178-120 | 30 g |
7 PRO Tips
- Tip 1: Choose the length by base plate thickness plus embedment: the screw must pass through the fixture and still reach adequate depth inside the plug.
- Tip 2: Use a masonry drill bit and drill the hole slightly deeper than the screw length so dust can collect at the bottom without blocking the plug.
- Tip 3: Blow out or vacuum drilling dust before inserting the plug; a dusty hole is one of the most common causes of poor holding strength.
- Tip 4: Insert the nylon plug flush with the surface, then drive the coach screw with a spanner or socket rather than an impact driver on full power.
- Tip 5: Do not over-tighten — stop once the fixture is firm, as excessive torque can strip the plug or crack the surrounding masonry.
- Tip 6: Keep fixings away from edges and previous holes in concrete or brick to reduce the risk of spalling or cracking.
- Tip 7: For vibrating equipment or heavy loads, use anchors specifically rated for that duty rather than a general-purpose coach screw set.
Applications
Warehouse & Logistics Facilities
- Anchoring guard rails and pedestrian barriers to concrete floors
- Fixing safety bollards and column protector base plates
- Mounting dock equipment brackets and wheel-stop supports
- Securing signage frames and floor-mounted fixtures
- Installing light-duty racking accessories and shelving brackets on masonry walls
Construction & Fit-Out
- Fixing timber battens and wall plates to brick or concrete
- Mounting metal frames and door or window sub-frames
- Securing handrail and balustrade brackets to masonry
- Installing cladding supports and general wall-mounted fittings
- Site fixing tasks requiring a matched screw and plug in one set
Industrial & Maintenance
- Mounting machine guards and equipment brackets to concrete floors
- Fixing cable tray and conduit support brackets on masonry
- Securing workshop benches, cabinets, and storage units
- Installing lighting, sensors, and other fixtures on solid walls
- General facility maintenance and repair fixing tasks
Features & Benefits Table
| Feature | Benefit |
| Matched coach screw and nylon plug | No guesswork on plug compatibility, so installation is faster and more reliable |
| Hex head design | Accepts a spanner or socket for higher tightening torque than standard screws |
| Four lengths: 75, 90, 100, 120mm | Choose the right embedment depth for thin or thick fixtures |
| Nylon plug expansion | Grips concrete, brick, and masonry as the screw is tightened to resist pull-out |
| Sold per set | Buy exactly the quantity needed, with no minimum box commitment |
| Lightweight (15–30 g per set) | Low courier weight keeps delivery costs down, even for larger orders |
| Supplied with warehouse safety range | Source fixings together with guard rails, bollards, and barriers from one supplier |
Frequently Asked Questions (FAQ)
Q1. What is a coach screw and nylon plug set used for?
It is used to fix items to concrete, brick, and solid masonry. The nylon plug expands inside a drilled hole as the coach screw is tightened, gripping the base material.
Q2. What sizes are available?
The M10 range comes in four lengths: 75mm (B01-00178-75), 90mm (B01-00178-90), 100mm (B01-00178-100), and 120mm (B01-00178-120).
Q3. Does the set include the nylon plug?
Yes. Each set includes one coach screw and one matching nylon plug, with the plug size matched to the screw.
Q4. How much does each set weigh?
The M10x75 weighs 15 g, M10x90 weighs 20 g, M10x100 weighs 25 g, and M10x120 weighs 30 g per set.
Q5. How are the sets sold?
They are sold per piece / per set, so you can order exactly the quantity you need.
Q6. Can I use these for structural or lifting anchor points?
No. They are designed for light-to-medium duty fixing. Structural, lifting, or life-safety anchor points, including fall-arrest anchors, require engineered and rated anchors selected by a qualified person.
Q7. Which length should I choose?
Choose a length that passes through your fixture and still gives adequate embedment in the base material. Longer sets such as M10x100 and M10x120 suit thicker base plates or battens. Blue Box’s sales team can help you match the size to your job.
Q8. How do I order coach screw sets in Malaysia?
You can request a quotation through www.blue-box.asia or contact Blue Box Sdn Bhd’s sales team by phone or WhatsApp for fast, Malaysia-wide delivery support.
Pain Points vs. Solutions
| Pain Point | Blue Box Solution |
| Mismatched screws and plugs lead to weak or failed fixings | Each set pairs a coach screw with a size-matched nylon plug |
| Standard screws cannot be tightened firmly enough for heavier fixtures | Hex head design accepts a spanner or socket for higher tightening torque |
| One fixed length does not suit every base plate or batten thickness | Four lengths (75, 90, 100, 120mm) let you match embedment to the job |
| Buying full boxes ties up cash when only a few fixings are needed | Sold per piece / per set, so you order only what you need |
| Sourcing fixings and safety equipment from separate suppliers slows procurement | Available alongside Blue Box’s Warehouse Safety Solutions for one-stop ordering |
Technical Documentation
Brand: BBSB
Parent Model: B01-00178
Set Contents: 1 coach screw + 1 matching nylon plug
Screw Diameter: M10
Sold As: Per piece / per set
Est. Packed Box Size (Courier): Approx. 15cm (L) x 10cm (W) x 5cm (H) per set (estimate — confirm after packing)
Recommended Installation: Drill to the depth and diameter recommended for the plug, clear dust, insert plug flush, and drive the coach screw with a spanner or socket until firm
Reference Standard: General fixing practice; refer to DOSH Malaysia (www.dosh.gov.my) for workplace safety guidance
WooCommerce Variation Data
| Variation (Size) | SKU / Model | Weight (kg) | Weight (g) |
| M10 x 75mm | B01-00178-75 | 0.015 | 15 g |
| M10 x 90mm | B01-00178-90 | 0.020 | 20 g |
| M10 x 100mm | B01-00178-100 | 0.025 | 25 g |
| M10 x 120mm | B01-00178-120 | 0.030 | 30 g |
Order Now — Call to Action
Need reliable fixings for your next installation? Order M10 Coach Screw & Nylon Plug Sets today from Blue Box Sdn Bhd — Malaysia’s trusted supplier of packaging, cargo securing, and warehouse supplies.
- WhatsApp: +6018 988 6818 / +6012 779 2930
- Phone: 03-8052-0108
- Email: customerservice@blue-box.asia
- Website: www.blue-box.asia
Bulk orders and Malaysia-wide delivery available. Request your quotation today.
Why Choose Blue Box
- Malaysia-based supplier with fast quotation turnaround for warehouse fixings and supplies.
- Established since 2017, serving warehouse, construction, and industrial customers across Selangor and Malaysia-wide.
- Matched coach screw and nylon plug in every set, with four lengths to choose from.
- Flexible ordering: sold per piece / per set to suit small repairs and large projects alike.
- One-stop sourcing — pair fixings with guard rails, bollards, and barriers from the same supplier.
- Reliable stock availability supported by Blue Box’s dedicated warehouse operations.
- Responsive customer service via phone, email, and WhatsApp for quotations and order support.
Custom Branding & OEM
Blue Box Sdn Bhd offers custom product design and private label manufacturing support for fixings and related warehouse supplies, including custom packaging with corporate branding, pre-packed assortments of sizes, and bespoke bulk packing configurations for distributors and corporate procurement programmes.
Minimum order quantities, lead times, and packaging specifications vary by request. Contact the Blue Box sales team to discuss OEM requirements and receive a tailored quotation.
Company Information
Company: Blue Box Sdn Bhd (Reg. No. 201701018646 / 1232811-W)
Founded: 2017
Address: 27, Jalan Industri USJ 1/11, Taman Perindustrian USJ 1, 47600 Subang Jaya, Selangor, Malaysia
Phone: 03-8052-0108 / +6018 988 6818 / +6012 779 2930
Email: customerservice@blue-box.asia
Website: www.blue-box.asia
Specialisation: Packaging materials, cargo securing systems, workplace safety equipment, road safety products, and custom/private label manufacturing
Disclaimer (Product-Specific)
The M10 Coach Screw & Nylon Plug Set is a general-purpose fixing intended for light-to-medium duty fastening into concrete, brick, and solid masonry. Holding strength depends on the base material, hole preparation, drill size, embedment depth, and installation quality, and no load rating is stated or implied by this product page. These sets are not intended for structural anchoring, lifting points, or life-safety applications (including fall-arrest anchor points), which require engineered, rated anchors selected by a qualified person. Always follow the recommended drilling and installation method, wear appropriate eye protection and dust protection when drilling, and consult DOSH Malaysia guidelines for workplace safety. Weights are per set and packing dimensions are estimates; specifications are subject to change without prior notice, so please confirm current specifications with our sales team before order confirmation.
