Double Mast Hand Stacker Malaysia
PRODUCT OVERVIEW

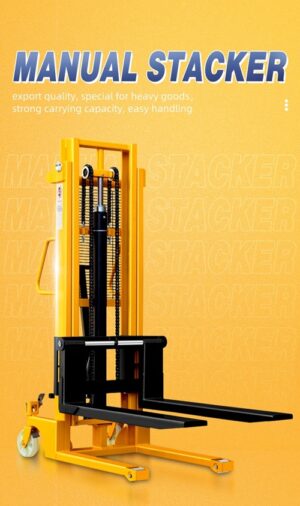

The Double Mast Hand Stacker from Blue Box Sdn Bhd is a manual, crank-operated stacker with a rated capacity of 1000 kg. It is supplied in three lift heights, 2000mm, 2500mm, and 3000mm, so you can match the stacker to your racking or stacking height. Because it is operated by hand with a crank, it needs no electricity, fuel, or batteries.
The specification sheet for the 3000mm model (CTY-EH1.0) gives a lowered fork height of 90mm, which lets the forks slide under a standard pallet, and an adjustable fork width from 300 to 750mm to suit different loads. The fork length is 900mm. The lift speed is 14mm per crank stroke, and lowering is controllable. The crank operating force is 32 kg, which is the effort the operator applies at the handle.
The machine’s overall size is 1895 x 785 x 1470mm, and the front legs are 690mm apart. The front wheels are 75 x 52mm and the rear wheels 180 x 50mm. The 3000mm model weighs 240 kg, so it is a heavy machine to move by hand, and delivery is by lorry or freight rather than parcel courier.
Manual lifting equipment must be used within its rating and on suitable floors. DOSH Malaysia provides guidance on manual handling and lifting equipment. A load must never exceed the 1000 kg rating, and it should be placed evenly on the forks.
The specification sheet supplied covers the 3000mm model (CTY-EH1.0). The 2000mm and 2500mm variants are listed here with their weights only, and their full specifications, such as overall height and lowered height, should be confirmed with our sales team before purchase.
Blue Box Sdn Bhd supplies the stacker as part of its Warehouse Operational Supplies range, alongside the 2.5 ton and 5 ton hand pallet jets, so warehouses across Petaling Jaya, Shah Alam, Klang, and Selangor can source their handling equipment from one supplier. Visit www.blue-box.asia to view the full range or request a quotation.
Whether you are stacking pallets to racking height in a Klang warehouse or loading stock at a factory dock in Shah Alam, the Double Mast Hand Stacker gives you a 1000 kg manual lift to the height you need.
Product Specifications Table
| Specification | Detail (CTY-EH1.0 model, per supplied specification sheet) |
| Product Name | Double Mast Hand Stacker, 1000 kg Capacity (2000mm, 2500mm, 3000mm Lift) |
| Brand | BBSB |
| Parent Model | M01-00010 |
| Model (spec sheet) | CTY-EH1.0 (also listed as CTY-EH1.0/3.0) |
| Type | Double mast hand stacker, manual crank-operated |
| Rated Lifting Capacity | 1000 kg |
| Maximum Lifting Height | 3000mm (on this model) |
| Lowered Height of Forks | 90mm |
| Fork Length | 900mm |
| Adjustable Fork Width | 300–750mm |
| Lifting Speed | 14mm per stroke |
| Lowering Speed | Controllable |
| Crank Operating Force | 32 kg |
| Outer Width of Front Legs | 690mm |
| Front Wheel Size | Ø75 x 52mm |
| Rear Wheel Size | Ø180 x 50mm |
| Overall Size (L x W x H) | 1895 x 785 x 1470mm |
| Self Weight | 240 kg (3000mm model) |
| Packing | Not stated (estimates below) |
| Country of Supply | Malaysia (Blue Box Sdn Bhd, Selangor) |
Lift Height Variants
| Lift Height | Item Weight (self weight) | Est. Packed Size (estimate) |
| 2000mm | 200–240 kg | Approx. 150 x 85 x 50 cm (estimated) |
| 2500mm | Under 200 kg | Approx. 170 x 85 x 50 cm (estimated) |
| 3000mm | 240 kg | Approx. 195 x 85 x 50 cm (estimated) |
7 PRO Tips
- Tip 1: Keep the load within the 1000 kg rating, and place it evenly across both forks.
- Tip 2: Fully lower the forks before driving the stacker, and keep the mast upright while moving.
- Tip 3: Set the fork width to suit the pallet, and check the forks are fully under the load before lifting.
- Tip 4: Lift and lower slowly and steadily using the crank; the lowering speed should stay controllable.
- Tip 5: Never stand under a raised load or allow anyone within the reach of the mast and forks.

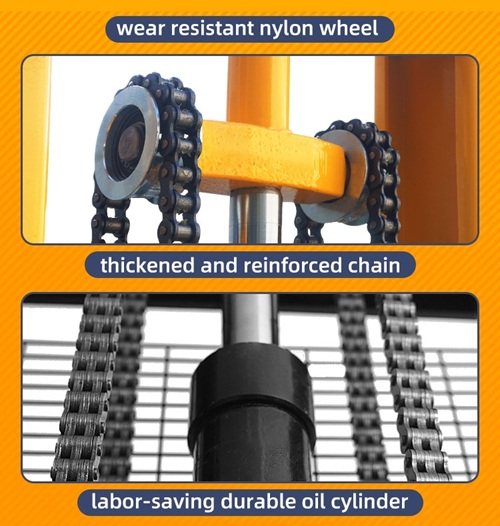

- Tip 6: Inspect the crank, chain, wheels, and forks before each shift, and take a damaged unit out of service.
- Tip 7: Store the stacker lowered, on a flat floor, and away from damp or wet areas to protect the wheels and mechanism.
Applications
Warehousing & Racking
- Stacking pallets onto low and mid-level racking
- Moving goods to picking levels in storage aisles
- Lifting stock for cycle counts and stocktakes
- Stacking boxed goods in areas without powered equipment
- General stock handling in small and medium warehouses
Factories & Production
- Lifting components onto production benches
- Stacking finished goods for dispatch
- Handling materials between production stages
- Loading and unloading at machine feed points
- General in-plant lifting tasks
Retail, Logistics & Distribution
- Stacking stock at store and back-of-house storage
- Lifting goods at distribution centre loading bays
- Moving stock to upper shelving in stockrooms
- Handling palletised goods in depots
- General lifting where no electric forklift is available
Features & Benefits Table
| Feature | Benefit |
| 1000 kg rated capacity | Handles heavy pallets and loads for everyday warehouse and factory work |
| Manual crank operation | No electricity, batteries, or fuel to buy and maintain |
| Three lift heights (2000, 2500, 3000mm) | Choose the height your racking or stacking needs |

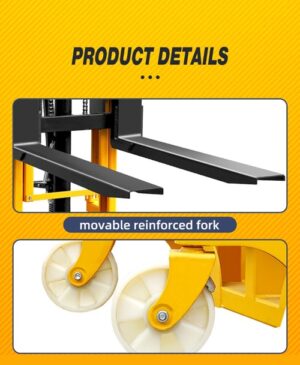

| Adjustable fork width (300–750mm) | Suits pallets and loads of different widths |
| Lowered fork height of 90mm | Forks slide under standard pallets to lift them |
| Controllable lowering | Lower loads smoothly and with control |
| Part of Blue Box’s warehouse handling range | Source handling equipment alongside pallet jets from one supplier |
Frequently Asked Questions (FAQ)
Q1. What is a double mast hand stacker?
It is a manual, crank-operated stacker that lifts loads vertically for racking and stacking, without electricity or batteries.
Q2. What is the lifting capacity?
The rated capacity is 1000 kg.
Q3. What lift heights are available?
2000mm, 2500mm, and 3000mm.
Q4. How high does the 3000mm model lift?
The specification sheet gives a maximum lifting height of 3000mm for the CTY-EH1.0 model.
Q5. How much does the stacker weigh?
The 3000mm model weighs 240 kg. The 2000mm model weighs between 200 and 240 kg, and the 2500mm model under 200 kg.
Q6. What are the fork dimensions?
The fork length is 900mm, and the fork width is adjustable from 300 to 750mm.
Q7. How much force is needed to crank it?
The crank operating force is 32 kg.
Q8. How do I order the stacker in Malaysia?
You can request a quotation through www.blue-box.asia or contact Blue Box Sdn Bhd’s sales team by phone or WhatsApp. Because the stackers are heavy, delivery is by lorry or freight.
Pain Points vs. Solutions
| Pain Point | Blue Box Solution |
| Lifting pallets to racking height by hand is not possible | Manual crank stacker lifts loads up to 3000mm |
| Electric stackers need charging and maintenance | Manual crank operation needs no power source |
| One lift height does not suit every racking system | Three lift heights: 2000, 2500, and 3000mm |
| Sourcing handling equipment from different suppliers slows procurement | Available alongside Blue Box’s warehouse handling range |
Technical Documentation
Parent Model: M01-00010
Spec Sheet Model: CTY-EH1.0 (3000mm lift)
Rated Capacity: 1000 kg
Lowered Fork Height: 90mm
Fork Length / Width: 900mm / 300–750mm adjustable
Lifting / Lowering: 14mm per stroke / controllable
Crank Operating Force: 32 kg
Front Leg Outer Width: 690mm
Wheels (front / rear): Ø75 x 52mm / Ø180 x 50mm
Overall Size: 1895 x 785 x 1470mm (3000mm model)
Reference Standard: General manual handling and lifting equipment practice; refer to DOSH Malaysia (www.dosh.gov.my)
WooCommerce Variation Data
| Variation (Lift Height) | SKU / Model | Weight (kg) | Dimensions (L x W x H, cm) |
| 2000mm | M01-00010-2000 | 240 | 150 x 85 x 50 |
| 2500mm | M01-00010-2500 | 200 | 170 x 85 x 50 |
| 3000mm | M01-00010-3000 | 240 | 195 x 85 x 50 |
Notes to confirm: (1) The spec sheet covers the 3000mm model only; overall size and lowered height for the 2000mm and 2500mm models were not given. (2) Packed sizes are estimates, since none were given. (3) SKUs were suggested as M01-00010-2000, -2500, and -3000; confirm your numbering. (4) The supplied title listed the model as “CTY-EH1.0/3.0”, which is used here as the spec sheet model. (5) Shipping weights use the upper end of each range.
Order Now — Call to Action
Lift your stock to the height you need. Order the 1000kg Double Mast Hand Stacker today from Blue Box Sdn Bhd — Malaysia’s trusted supplier of packaging, cargo securing, and warehouse equipment.
- WhatsApp: +6018 988 6818 / +6012 779 2930
- Phone: 03-8052-0108
- Email: customerservice@blue-box.asia
- Website: www.blue-box.asia
Bulk orders and Malaysia-wide lorry or freight delivery available. Request your quotation today.
Why Choose Blue Box
- Malaysia-based supplier with fast quotation turnaround for warehouse equipment.
- Established since 2017, serving warehouses, factories, and logistics companies across Selangor and Malaysia-wide.
- 1000 kg manual stacker with three lift heights to match your racking.
- No electricity, batteries, or fuel needed.
- One-stop sourcing — pair stackers with pallet jets, spacers, and other warehouse supplies.
- Reliable stock availability supported by Blue Box’s dedicated warehouse operations.
- Responsive customer service via phone, email, and WhatsApp for quotations and delivery arrangements.
Custom Branding & OEM
Blue Box Sdn Bhd offers custom product design and private label manufacturing support for warehouse handling equipment, including custom branding and bulk orders for corporate and distributor customers, subject to the specifications of the base product.
Minimum order quantities, lead times, and specifications vary by request. Contact the Blue Box sales team to discuss OEM requirements and receive a tailored quotation.
Company Information
Company: Blue Box Sdn Bhd (Reg. No. 201701018646 / 1232811-W)
Founded: 2017
Address: 27, Jalan Industri USJ 1/11, Taman Perindustrian USJ 1, 47600 Subang Jaya, Selangor, Malaysia
Phone: 03-8052-0108 / +6018 988 6818 / +6012 779 2930
Email: customerservice@blue-box.asia
Website: www.blue-box.asia
Specialisation: Packaging materials, cargo securing systems, workplace safety equipment, road safety products, and custom/private label manufacturing
Disclaimer (Product-Specific)
The Double Mast Hand Stacker is a manual, crank-operated lifting device rated for a load of 1000 kg. The rated capacity applies to a load evenly placed on the forks and must never be exceeded. It is for raising loads on flat, hard, level floors only, and must not be used to lift or carry people, on slopes, or in ways the manufacturer has not specified. Operators must be trained, must keep hands and feet clear of the mast and forks during lifting and lowering, and should never stand under a raised load. Check the crank, chain, forks, wheels, and mast for damage before each use, and take a damaged unit out of service. The product specification sheet shows a maximum lift of 3000mm for the CTY-EH1.0 model; the 2000mm and 2500mm variants, and the lifting and lowering arrangement for each, have not been confirmed by the specification supplied and should be confirmed with our sales team before purchase. Blue Box Sdn Bhd recommends consulting DOSH Malaysia guidelines on manual handling and lifting equipment. All specifications, weights, and packing dimensions are approximate and subject to change without prior notice, so please confirm current specifications with our sales team before order confirmation.
